Norge Dryer LNC8435A80 Parts

Dryer drum drive belt. This belt is approximately 1/4" wide x 92-1/4" long. It is flat on one side and has 4 ribs and 3 grooves on the other. It replaces many other belts, including some with 5 ribs and 4 grooves. The belt attaches to the motor pulley and spins the drum as the motor rotates

Dryer gas burner valve solenoid set. If the dryer does not heat or heats intermittently the coils could be defective. To test, watch the burner and if the igniter glows for a while and then shuts off without the gas igniting, it usually means one of these coils is bad.

Gas dryer sensor for igniter and flame. The sensor is located across from the gas igniter at the dryer’s burner assembly. This flame sensor should be closed for continuity at room temperature. Check for continuity with a multi-meter before replacing.

Dryer thermal fuse and high limit thermostat kit for both gas and electric models. If the dryer does not heat then the thermal fuse may have blown and will need to be replaced.

Door catch kit, includes catch and clip (metal) Replace both parts for best results

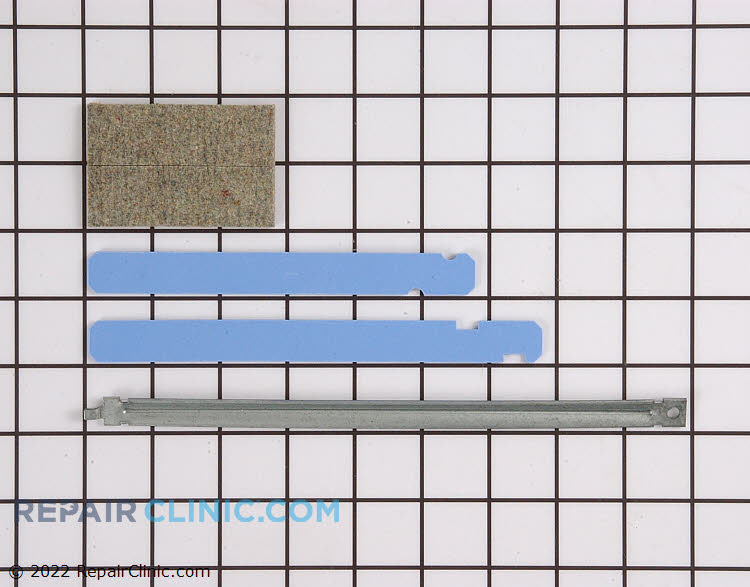

Drum glide kit, right side. *Pad has adhesive backing

Front or rear felt seal for dryer drum

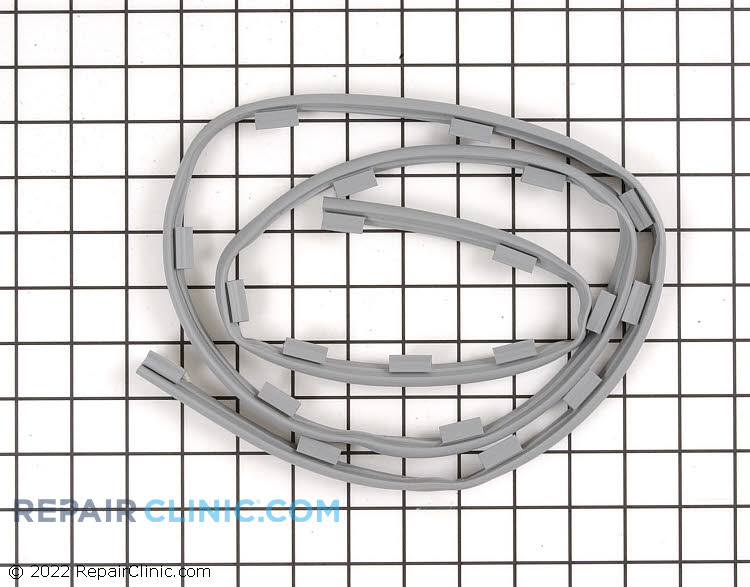

Door Seal - Dryer.

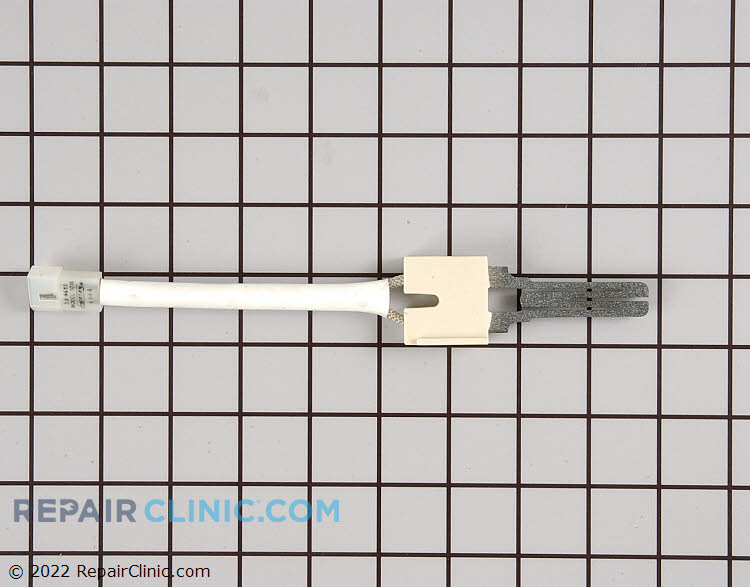

The Whirlpool Burner Igniter WP31001556 is a high-quality replacement part for dryers that lights the gas burner to heat the dryer during the cycle. It replaces several other part numbers. Disconnect the appliance from all utilities prior to installation.

Front glide kit, (1) right (1) left glide (2) pads with adhesive backing. Instructions included.

Gas line. 4' stainless gas dryer connector, (1) 3/8" and (1) 1/2" fitting, (1) extra 3/4" fitting, pipe thread sealant, leak test solution, and installation instructions.

Leveling Leg

Gas valve conversion kit, Natural to LP (liquid propane) gas.

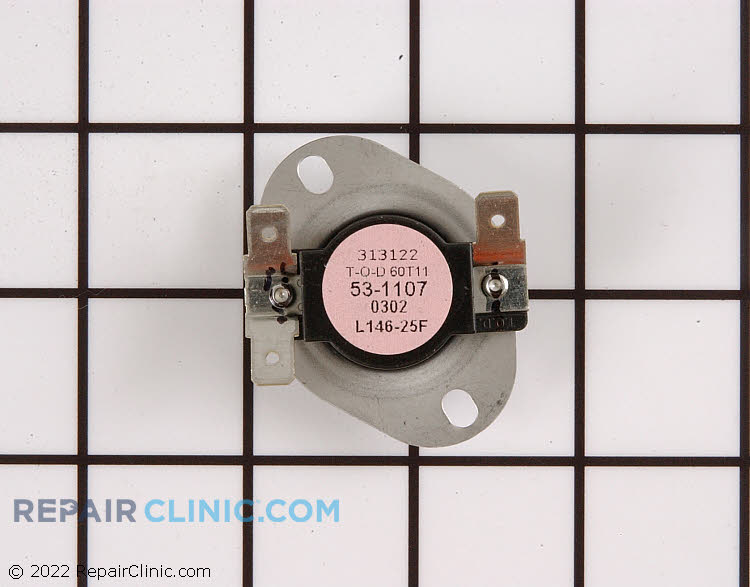

Cycling thermostat, L146-25, 2 wire with extra terminal

Idler arm & wheel assembly
