Admiral Dryer ADG7000AWW Parts

Dryer drum drive belt. This belt is approximately 1/4" wide x 92-1/4" long. It is flat on one side and has 4 ribs and 3 grooves on the other. It replaces many other belts, including some with 5 ribs and 4 grooves. The belt attaches to the motor pulley and spins the drum as the motor rotates

Dryer gas burner valve solenoid set. If the dryer does not heat or heats intermittently the coils could be defective. To test, watch the burner and if the igniter glows for a while and then shuts off without the gas igniting, it usually means one of these coils is bad.

Gas dryer sensor for igniter and flame. The sensor is located across from the gas igniter at the dryer’s burner assembly. This flame sensor should be closed for continuity at room temperature. Check for continuity with a multi-meter before replacing.

Dryer thermal fuse and high limit thermostat kit for both gas and electric models. If the dryer does not heat then the thermal fuse may have blown and will need to be replaced.

Dryer blower wheel, 3-1/8" deep, 8" in diameter, 7-1/8" hub diameter, 20 standard fins, ½" diameter motor shaft, 3/8" motor shaft diameter to flat side of shaft. If more than one blower wheel is listed with your model, call us with your model and serial number to verify the part.

Dryer lint filter (lint trap). Your lint filter should be replaced if it is torn or damaged in any way.

Door catch kit, includes catch and clip (metal) Replace both parts for best results

Screw

Dryer drum drive motor assembly. If the dryer does not start the motor could be bad. Before replacing the motor the door switch and thermal fuse should be tested to determine if they are defective.

Spring clamp for blower wheel

Drum glide kit, right side. *Pad has adhesive backing

Motor retaining clamp

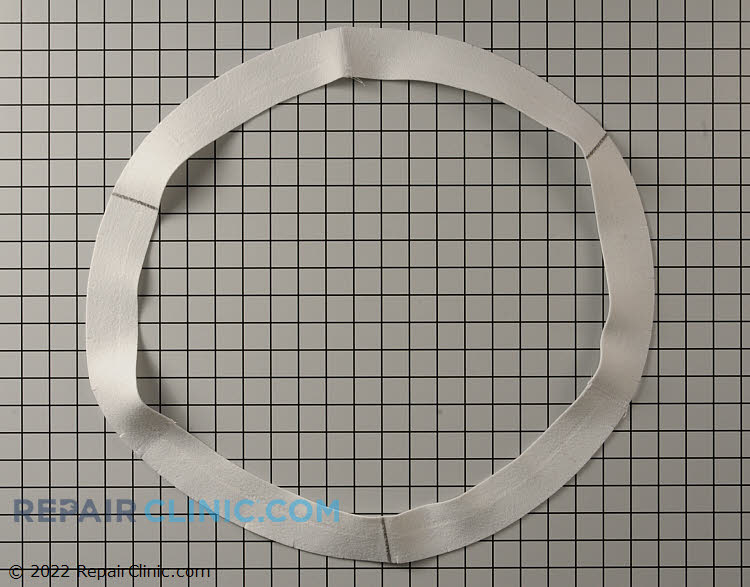

Front or rear felt seal for dryer drum

LP Conversion kit, Natural to LP gas

High limit thermostat, L248-80F
