Roper Washing Machine RTW4516FW1 Parts

Drive Clutch (Splutch) Kit. This kit has 6 parts; a spring, housing, cam ring, basket drive gear, pulley, and nut. The pulley is driven by the belt and the splutch works with the mode shift actuator to drive the washplate and spin the inner basket. A worn splutch can cause spin or washplate problems

Mode shift actuator with 6 pin wire connection

Agitator Dogs - High-quality replacement part from Whirlpool. This kit can be used if the top part of the agitator is not moving properly but the bottom part is.

Washer main drive belt. This belt is located under the washing machine and is used to drive the splutch pulley. It goes around the motor & splutch pulleys. Worn or broken drive belt can cause spin or washplate problems.

Suspension rod kit

Washing machine agitator repair kit with a medium length cam (there are other kits available for different models). This kit should be used when the top part of the agitator is not moving properly but the bottom part is.

Affresh® Washing machine cleaner. This cleaner removes and prevents odor-causing residue in all brands of washers. To use, add one tablet to washer with no clothes and select hot water.
- Septic safe
- More effective than bleach.
- Three tablets per package.

Washing machine drain hose kit. Includes clamp. 4 feet long

Lid lock latch assembly. The part might arrive in the locked position. Per the manufacturer install the lid lock & power up washing machine to reset lock to the open position.

White Touch Up Paint

Timer knob, white

Water inlet valve

Replacement agitator kit

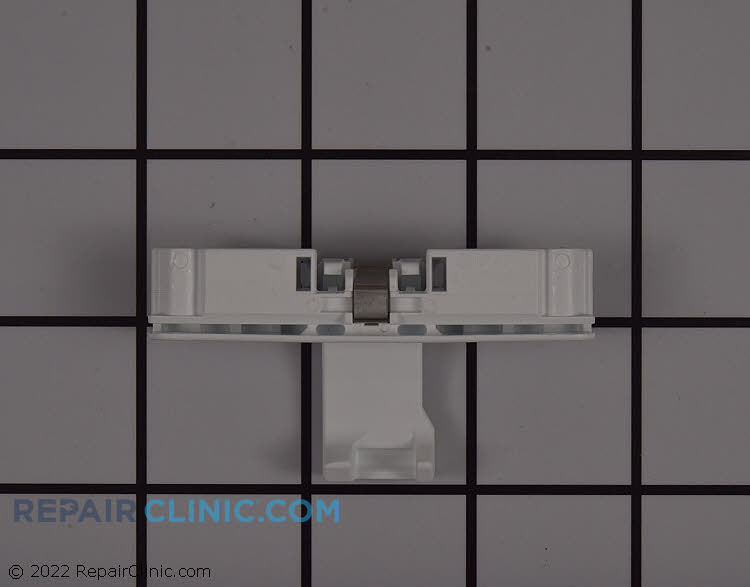

White washer lid strike assembly. The strike is what the lid lock hooks onto to lock the washing machine lid. If old strike looks different the latch may need to be replaced as well.

Spring clip inside control knob
