Luxaire Packaged Unit/RTU XA-05E20RTAZZ10001 Parts

Shop replacement repair parts for Luxaire Packaged Unit/RTU model XA-05E20RTAZZ10001

icons/packaged unit rtu
Brand:Luxaire
Model:XA-05E20RTAZZ10001
Product:Packaged Unit/RTU
Shop PartsDiagrams & ManualsRelated Videos
Filters
Symptoms
    No options available
    125 results
    Luxaire Packaged Unit/RTU Run Capacitor
    Genuine OEM Part # S1-02420045700 | RC Item #2335510
    # S1-02420045700
    RC Item #2335510
    Skill Level (2)
    skill level dotskill level dotskill level dotskill level dot
    Product is a manufacturer part
    S1-02420045700 Run Capacitor
    Watch Video
    $13.07

    Genteq Run Capacitor 370 Volt Oval Single 7.5 MFD

    Luxaire Packaged Unit/RTU Drain Pan
    Genuine OEM Part # S1-36387677000 | RC Item #2340891
    # S1-36387677000
    RC Item #2340891
    Product is a manufacturer part
    S1-36387677000 Drain Pan
    Watch Video
    $152.19

    Drain condensate pan

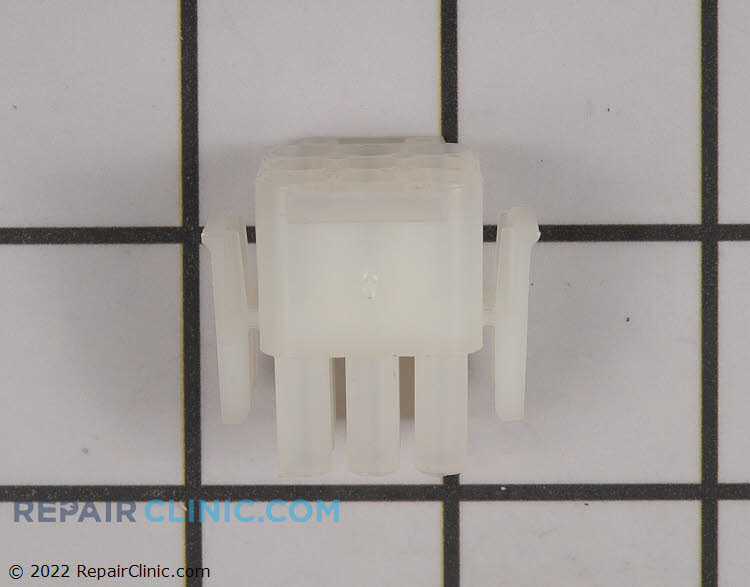

    Luxaire Packaged Unit/RTU Wire Connector
    Genuine OEM Part # S1-02521192000 | RC Item #2336652
    # S1-02521192000
    RC Item #2336652
    Product is a manufacturer part
    S1-02521192000 Wire Connector
    Watch Video
    $6.10

    Connector plug 9 circuit

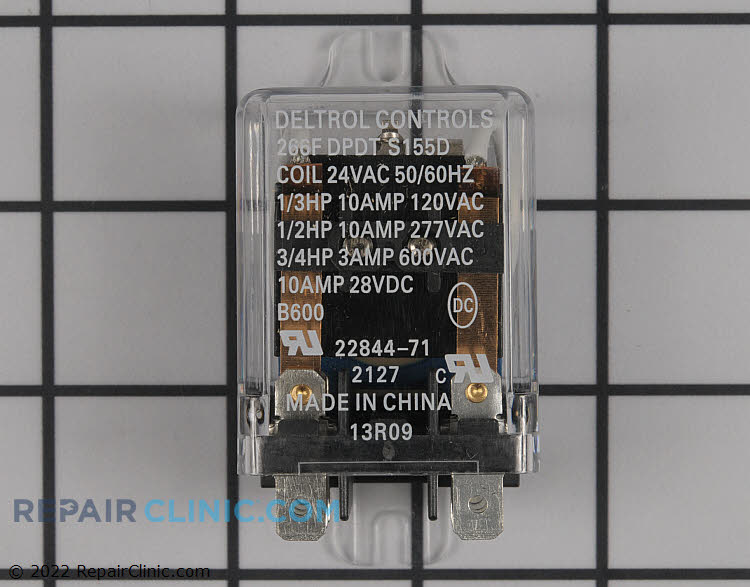

    Luxaire Packaged Unit/RTU Relay
    Genuine OEM Part # S1-02423972000 | RC Item #2335566
    # S1-02423972000
    RC Item #2335566
    Product is a manufacturer part
    S1-02423972000 Relay
    Watch Video
    $90.25

    Relay,cntrl,24v,50/60 hz,dpdt

    Luxaire Packaged Unit/RTU Contactor
    Genuine OEM Part # S1-02441623000 | RC Item #4960110
    # S1-02441623000
    RC Item #4960110
    Skill Level (2)
    skill level dotskill level dotskill level dotskill level dot
    Product is a manufacturer part
    S1-02441623000 Contactor
    Watch Video
    $105.33

    Contactor, 30 amps, 24 volts, 50/60 hertz

    Luxaire Packaged Unit/RTU Transformer
    Genuine OEM Part # S1-02549713000 | RC Item #4895411
    # S1-02549713000
    RC Item #4895411
    Skill Level (2)
    skill level dotskill level dotskill level dotskill level dot
    Product is a manufacturer part
    S1-02549713000 Transformer
    Watch Video
    $136.20

    Transformer,integrated,208/240,75va

    Luxaire Packaged Unit/RTU Nut
    Genuine OEM Part # S1-36390117700 | RC Item #2340911
    # S1-36390117700
    RC Item #2340911
    Skill Level (1)
    skill level dotskill level dotskill level dotskill level dot
    Product is a manufacturer part
    S1-36390117700 Nut
    Watch Video
    $31.11

    Nut,acorn kit #8-32 unc

    Luxaire Packaged Unit/RTU Circuit Breaker
    Genuine OEM Part # S1-02434532000 | RC Item #2332707
    # S1-02434532000
    RC Item #2332707
    Skill Level (2)
    skill level dotskill level dotskill level dotskill level dot
    Product is a manufacturer part
    S1-02434532000 Circuit Breaker
    Watch Video
    $19.75

    Circuit breaker 3.2 amp

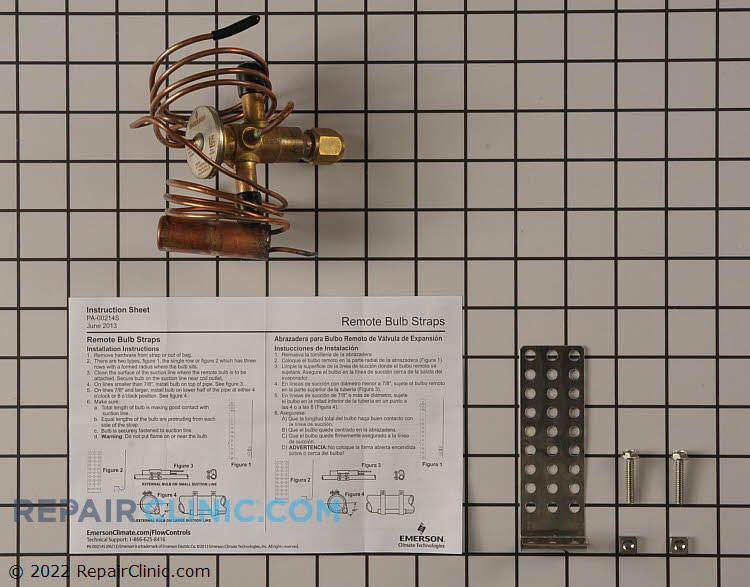

    Luxaire Packaged Unit/RTU Thermal Expansion Valve
    Genuine OEM Part # S1-091033 | RC Item #4980948
    # S1-091033
    RC Item #4980948
    Skill Level (4)
    skill level dotskill level dotskill level dotskill level dot
    Product is a bestsellerProduct is a manufacturer part
    S1-091033 Thermal Expansion Valve
    Watch Video
    $224.02

    Vlv,txv,3/8 x 3/8 odf,emerson

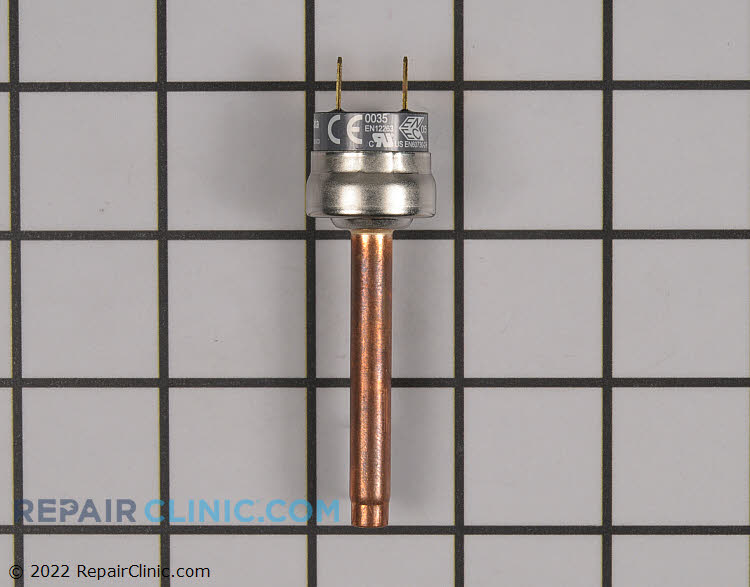

    Luxaire Packaged Unit/RTU Pressure Switch
    Genuine OEM Part # S1-5994063 | RC Item #4977377
    # S1-5994063
    RC Item #4977377
    Skill Level (4)
    skill level dotskill level dotskill level dotskill level dot
    Product is a bestsellerProduct is a manufacturer part
    S1-5994063 Pressure Switch
    Watch Video
    $76.25

    Pressure switch

    Luxaire Packaged Unit/RTU Condenser Fan Motor
    Genuine OEM Part # S1-6008093 | RC Item #4977192
    # S1-6008093
    RC Item #4977192
    Skill Level (4)
    skill level dotskill level dotskill level dotskill level dot
    Product is a bestsellerProduct is a manufacturer part
    S1-6008093 Condenser Fan Motor
    Watch Video
    $372.15

    Condensor motor

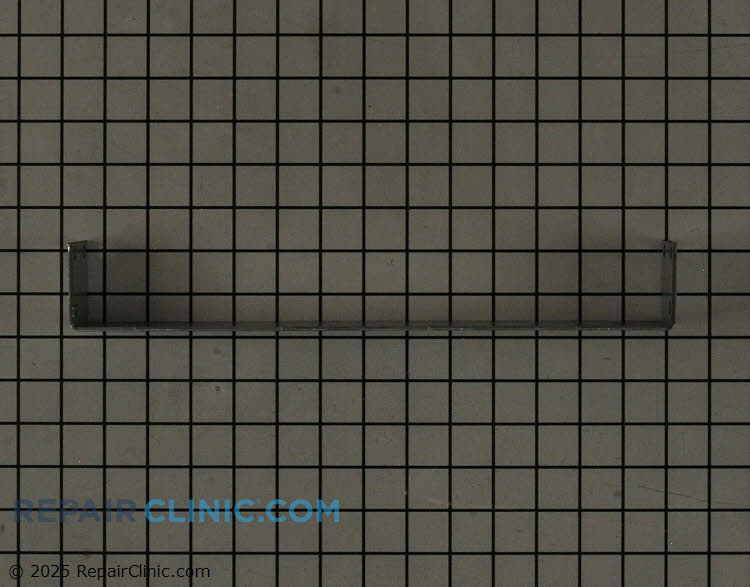

    Luxaire Packaged Unit/RTU Mounting Bracket
    Genuine OEM Part # S1-07344008000 | RC Item #4895876
    # S1-07344008000
    RC Item #4895876
    Product is a bestsellerProduct is a manufacturer part
    S1-07344008000 Mounting Bracket
    Watch Video
    $27.38

    Bracket,motor pivot,bd

    Luxaire Packaged Unit/RTU Filter Drier
    Genuine OEM Part # S1-404101 | RC Item #3277801
    # S1-404101
    RC Item #3277801
    Skill Level (4)
    skill level dotskill level dotskill level dotskill level dot
    Product is a bestsellerProduct is a manufacturer part
    S1-404101 Filter Drier
    Watch Video
    $70.23

    Filter-drier hpc 3/8 odf 18 sq in

    Luxaire Packaged Unit/RTU Panel duct rear tool less insulated
    Genuine OEM Part # S1-37331206000 | RC Item #3277769
    # S1-37331206000
    RC Item #3277769
    Product is a bestsellerProduct is a manufacturer part
    S1-37331206000 Panel duct rear tool less insulated
    Watch Video
    $157.88
    Luxaire Packaged Unit/RTU Pnl,elect heat access
    Genuine OEM Part # S1-37330263000 | RC Item #2859392
    # S1-37330263000
    RC Item #2859392
    Product is a bestsellerProduct is a manufacturer part
    S1-37330263000 Pnl,elect heat access
    Watch Video
    $94.66
