Price Match GuaranteeYork Furnace P4HUB12N08001A Parts
Shop replacement repair parts for York Furnace model P4HUB12N08001A
Furnace control board. The control board regulates the supply of power to the furnace components.
Gas Burner Tube
Furnace hot surface igniter kit. The igniter gets very hot and glows bright orange to light the gas burner. If the igniter is cracked or defective, the furnace won’t heat.
Genteq Run Capacitor 370 Volt Oval Single 7.5 MFD
Furnace flame sensor. The flame sensor monitors the burner to detect whether or not a flame is present. If the flame sensor is defective, the furnace may not heat.

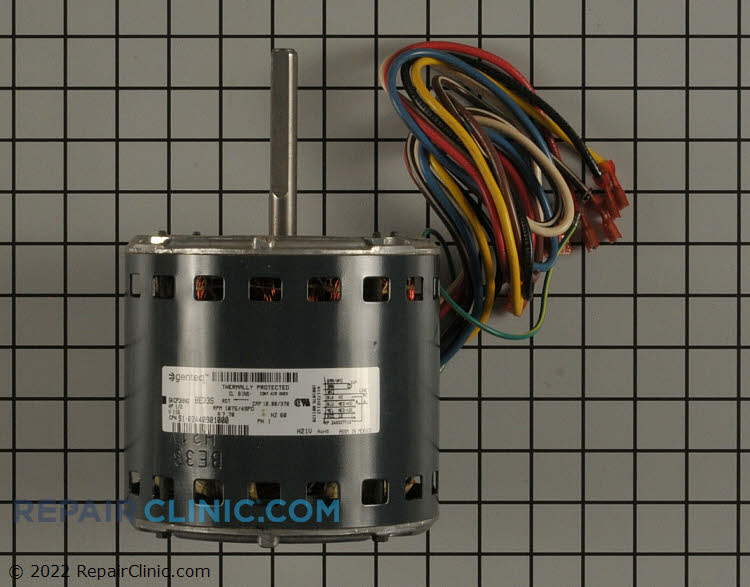

Furnace blower motor. This single-phase motor has the following specifications:
Horsepower: 1/2
Voltage: 115
Full-Load Amperage: 7.7
Hertz: 60
RPM: 1175
Speeds: 4
Rotation: Counterclockwise
Frame: 48
Enclosure: Open
Draft inducer blower assembly. 60 Hz 1.75 Amps, 3000 RPM.The draft inducer blower draws air into the burner and exhausts it out the flue. If the draft inducer motor is defective, the furnace may not heat.
Blade fuse. ATC-3 (3 Amp)
Gas valve kit

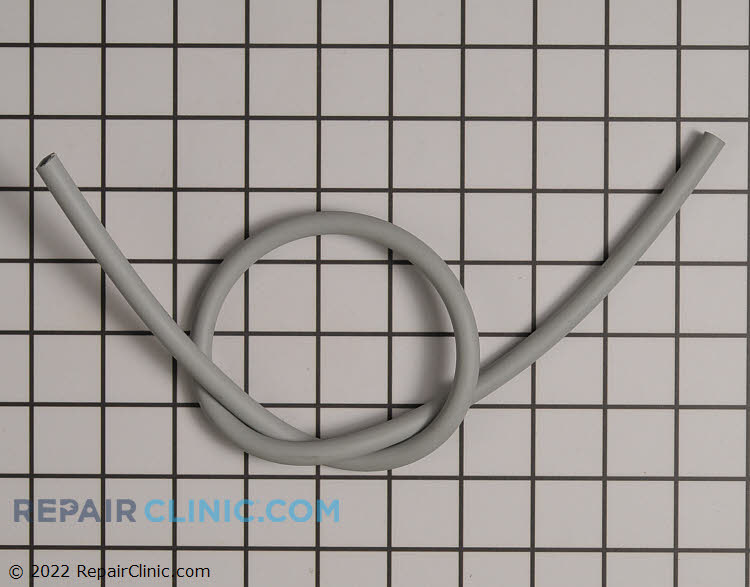

Pressure switch tubing .313 OD .188 ID
High limit thermostat -140 open, 110 close

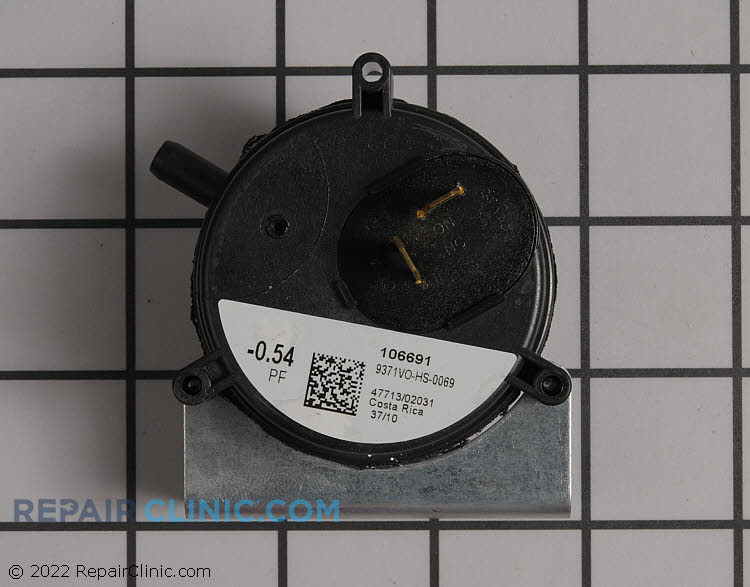

Pressure switch
Orifice,burner drill size 45
Flame rollout limit switch 185 degrees F open, manual reset
Transformer, 120 volt primary 24 volt secondary 40 va
Frequently Purchased Together For This Model
