Price Match GuaranteeTrane Furnace TUX100C948D3 Parts
Shop replacement repair parts for Trane Furnace model TUX100C948D3
Furnace flame sensor. The flame sensor monitors the burner to detect whether or not a flame is present. If the flame sensor is defective, the furnace may not heat.
Stainless steel burner
Transformer; 115v pri, 24v sec., 60hz, 35va, foot mount
RC Item #4547062
Integrated single-stage furnace control board. The control board regulates the supply of power to the furnace components. Be sure to check more commonly defective parts before replacing the control board.
Thermal limit switch, open at 190 degrees, close at 160 degrees
Capacitor; 440 vac oval motor run, 15 mfd
Switch; switch-flame rollout, 82 degrees c, 180 deg
Transition receptacle, includes four mounting screws
Door switch, 21 amps, 125/250 vac
Draft inducer motor, one stage with shaded pole motor *Note: All models use this part with the exception of: *UX/DX100A, UX/DX100C, UX/DX1C100, UX1D100, UX/DX120A, UX/DX120C. These select models use item 2458691.
1/2HP 115Volts 60Hz 9.35 amp 1075 RPM's 4 Speed Open Enclosure 48Y Frame Single Phase CCW 3" Shaft

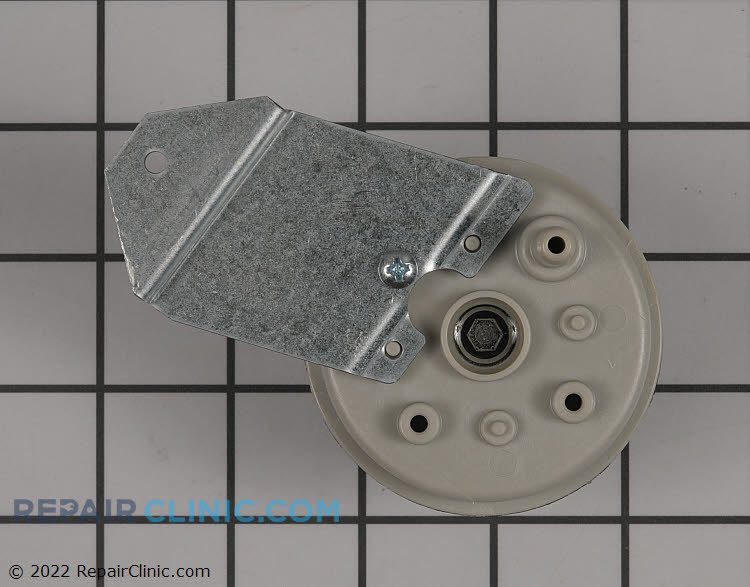

Pressure switch, 1.40"wc spst
10 in diameter x 10 in width. .50 BC. Clockwise rotation
Switch; limit inducer
Resilient ring, 2 required
